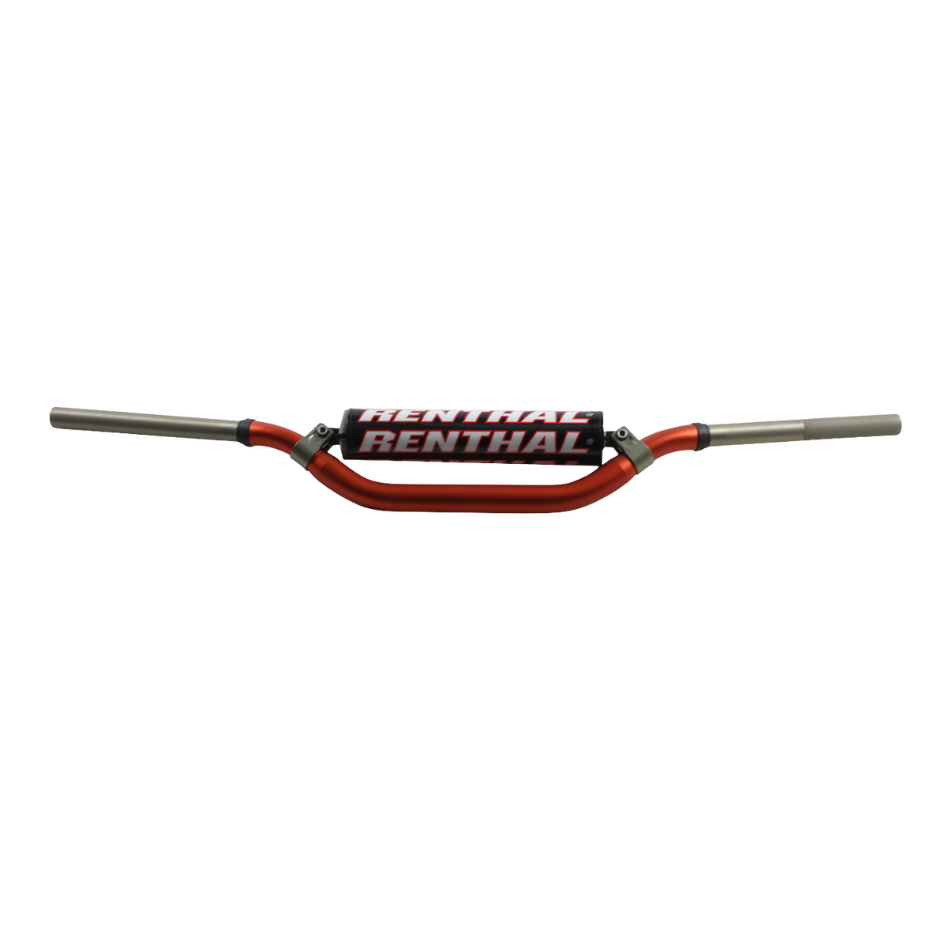

Renthal Twinwall Handlebar — RC/Twinwall

(0601-4960 / 997-01-OR-02-185)

Product Description:

Twinwall® Handlebar - 997 - RC/'04 - '18 CRF/'06+ KX/F - Orange

Race-strength bar with rigid steering feel and factory-orange finish.

Features:

• Twinwall® construction consists of two aluminum alloy tubes, one within the other
• Outer tube is 7010-T73, which has extreme resistance to mechanical damage and is anodized to prevent corrosion
• Inner tube is ultra high strength 7010-T6 aluminum and is hard anodized to resist wear from twist grip and controls
• Rubber seals are used to cover the ends of the outer tube to keep water and cleaning fluids out
• Laser marked in the middle for accurate positioning
• Each handlebar includes an updated injection molded foam bar pad for better protection and greater durability
• Requires model-specific 1-1/8" bar mounts for bikes originally equipped with 7/8" bars

Specs:

• Product Name: Handlebar
• Color/Finish: Orange
• Base Color: Orange
• Type/Bend: RC / Twinwall
• Rise: 2-1/2"
• Width: 31-5/8"
• Pullback/Sweep: 2-1/8”
• Height: 4-1/8”
• Handlebar Diameter: 1-1/8”
• Controls Diameter: 7/8”
• Clamping Diameter: 1-1/8”
• Clamping Width: 4-5/16”
• Material: Aluminum
• Units: Each
• Riding Style: ATV / Off-Road
